Product Description：

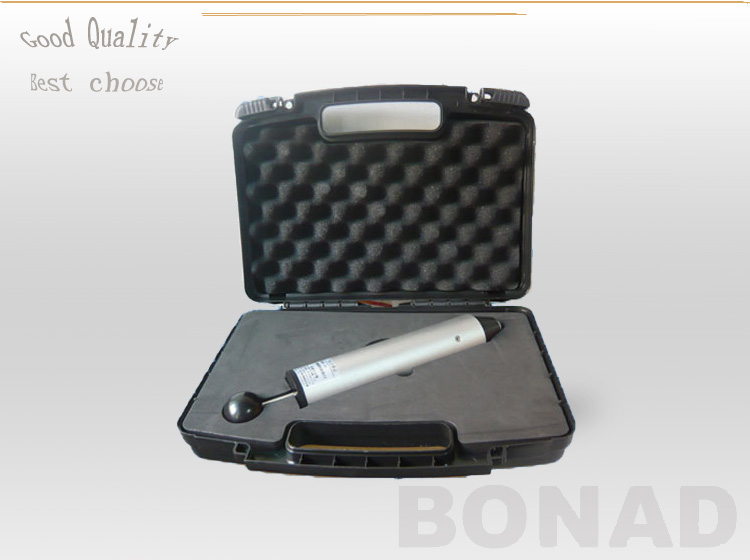

0.14J 0.2J,0.35J 0.5J 0.75J 1.0J 2.0J Single Spring Impact Hammer

Type：BND-T014/T020/T035/T050/T075/T100/T200/T106

Model:

BND-T014 0.14J Spring impact hammer

BND-T020 0.20J Spring impact hammer

BND-T035 0.35J Spring impact hammer

BND-T050 0.50 J Spring impact hammer

BND-T075 0.75J Spring impact hammer

BND-T100 1.0J Spring impact hammer

BND-T200 2.0J Spring impact hammer

BND-T106 0.14-1.0J Universal Spring impact hammer

Technical parameters:

Length:211mm

Weight:1250g

OD : 50mm

Hammer Weight :60g

Hammer Radius:10mm

The release force of impact: <10N

Impact Components: Including the hit ball handle the hammer ,weight 250g

Hammer head is made from white polyethylene imine first .

Types: Spring Operated Impact Hammer/0.14J/0.20J/0.35J/0.50J/0.70J/1.00J/ 1.50J/ 2.0J

Application:

Impact hammer are used to check the durability of enclosure for electrical applicance of other electronic product.The Impact Hammer is used to simulate the mechanical impact to test household and similar electrical appliances shell ,lever,handle,knobs,light and other shell to withstand mechanical shocks.
