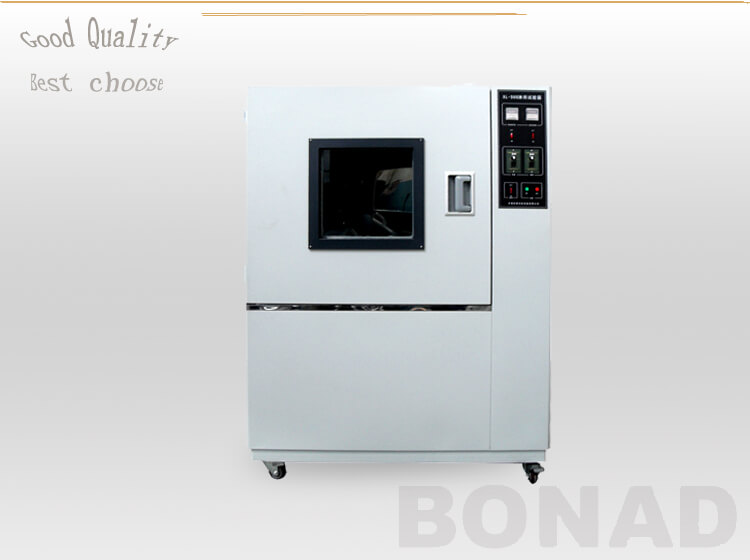

Rain water spray test chamber for waterproof test BND-HLY

Product Description:Name:Rain water spray test chamber for waterproof testType:BND-HLYPurpose:This product is applicable for the outer protection test of exterior lighting, signal devices and car lamps.Chamber Structure:1,This product can imitating nature typical environmental conditions beyond the limitation of time and season.It is able to save a lot of human and financial resources,also research grant when using the simulative environment instead.The test has the property of acceleration which can cut the period down.
Description

Product Description:

Name:Rain water spray test chamber for waterproof test

Type:BND-HLY


Purpose:

This product is applicable for the outer protection test of exterior lighting, signal devices and car lamps.


Chamber Structure:

1,This product can imitating nature typical environmental conditions beyond the limitation of time and season.It is able to save a lot of human and financial resources,also research grant when using the simulative environment instead.The test has the property of acceleration which can cut the period down.

2,This priduct can be able to adapt to test requirements for long-term, stable, safe, and reliable with its appropriate design and advanced product and components.It has simple operation and convenient to install,handle and Maintenan.

3,The inner bladder of the equipment have adopted high-quality stainless steel on the hull. With a large area of glass observation window, it has a beautiful appearance.It have adopted stainless steel material both the pipe and Swing table,. It has safety protection function .


model

BND-LY-800

BND-LY-1000

workroom size(D×W×H)mm

800×800×800

1000×1000×1000

technical index and material

Spraying Hole Diameter

Φ0.8 Φ0.4      Aperture Spacing 50mm

flow

0.067-0.074L/min(optional)

Water Pipe Diamete

Φ15~20mm

Test Bench Rotation Speed

5~17r/min(Stepless-speed)

Swing Range

±45°,±60°,±90°,±180°

The level of pipe

800mm

water pressure

80-400kPa(optional)
