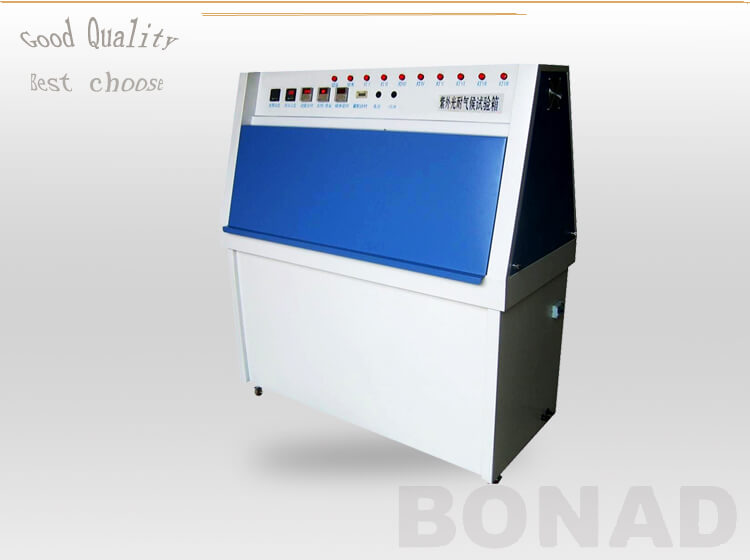

UV-resistant climate test chamber BND-HZW

This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Description

Product Description:

Name:UV-resistant climate test chamber

Type:BND-HZW


Purpose:

This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.


Structure:

1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

Product Spec.and Technical parameter table

model

BND-HZW-01

Stidio size(mm)

D

450

W

1170

H

500

Dimensions

D

660

W

1330

H

1130

Temperature Range

RT+10oC-70oC

Humidity Range

75-98%RH

Humidity uniformity

±2%

Temperature uniformity

±2oC

Temperature fluctuation

±0.5oC

Standard dimension of sample

75*150mm or 75*300mm

water tank depth

25mm,automation

Effective radiation area

900*210mm

UV Wavelength

UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

Test time

0-999H adjustable

Outer /Inner material of box

SUS304

Black Panel Temp

40oC-65oC

power supply

380V

Power Output

4KW

Standard Configuration

A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

Standards Applied

ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
