Product Description：

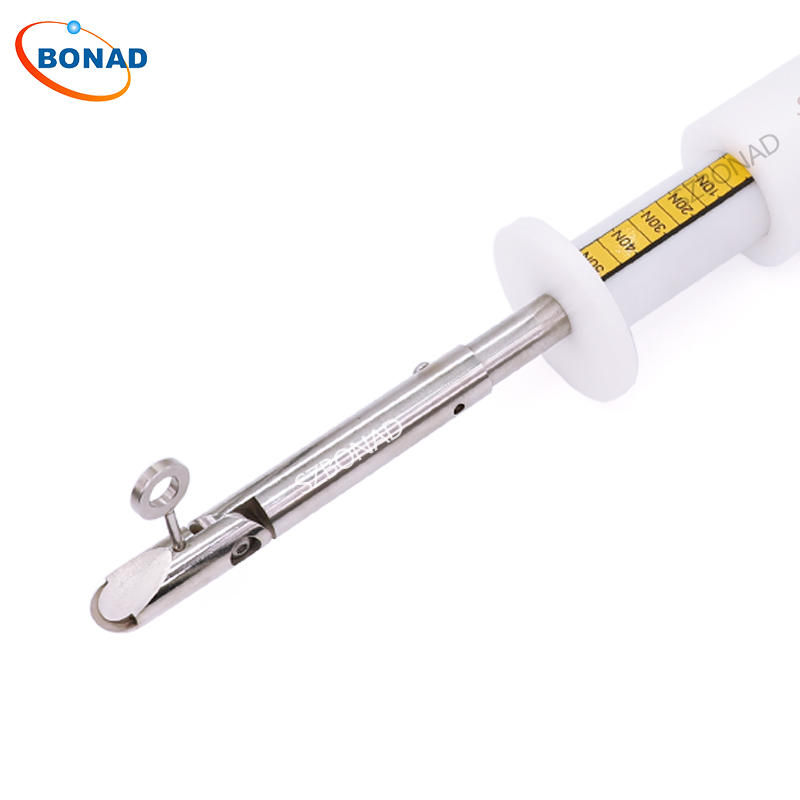

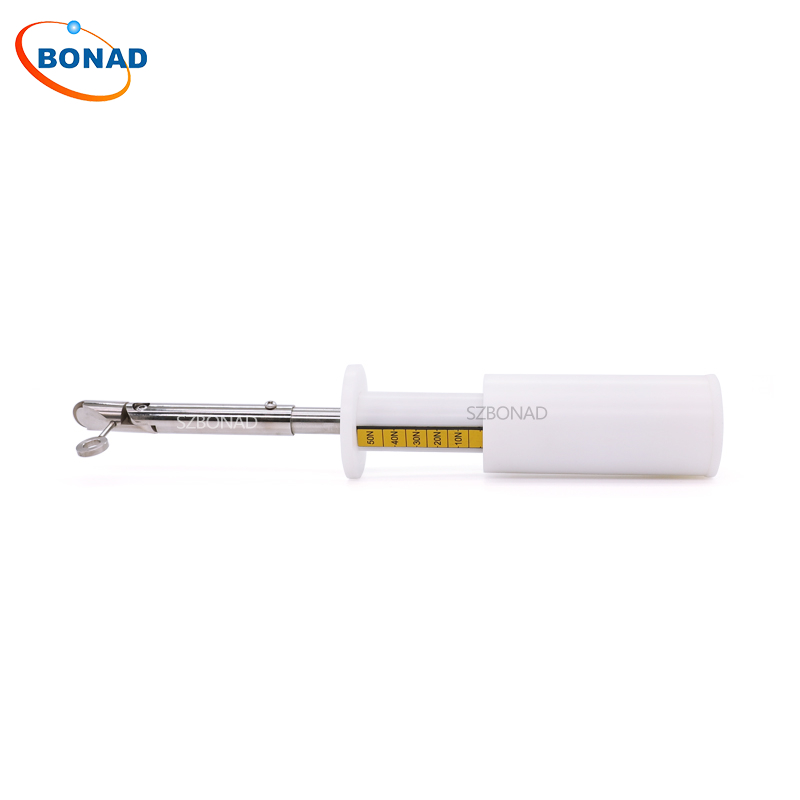

BND-ZJ IEC60335 Test Finger Nail probe

Model:BND-ZJ

Basic Introduction:

1，according to the GB4706.1-2005、IEC60335-1,UL1025,UL1278,UL507

2，The Test Finger Nail is mainly used for the shocking or the non-removable parts of contacting with moving parts to determine whether it can withstand the mechanical stress in normal use ,to reach the required level of protection test.

Technical parameters

1,Test Finger Nail components:fingertip,the middle finger ,base finger .

2, exert pressure: 10N, 20N, 30N

3, Reference standards: GB4706.1-2005 figure 7, IEC60335-1 in figure 7

Application:

1, press 10N on the surface of scratch test, material scraped surface can not be separated.Using the test finger insert any seams or joints,and then impose vertically a 10N side draw in ,but it can not be twisted and leceraged.The related components can not be fell off or be damaged.
