Product Description：

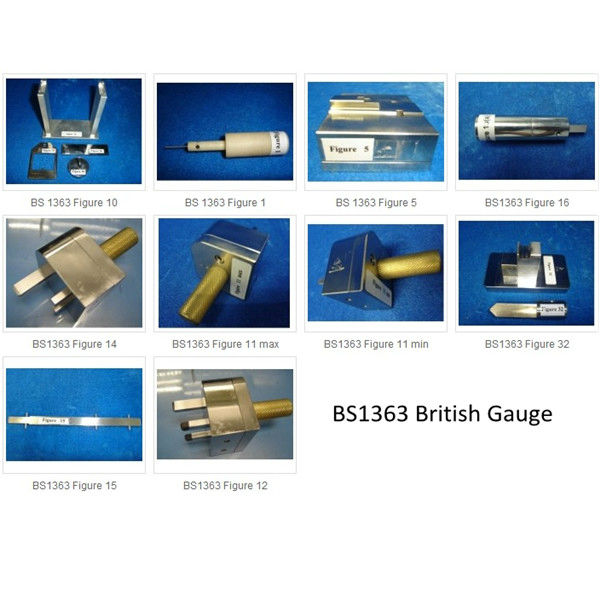

Name：BS1363-2 British Standard Plugs and socket gauges
Type：BND-BS1363
Manufacturer：we can provice the gauges of BS1363,VDE0620,EN50075,UL498,DIN,NBR14136 amd the so on
|
No. |
Product name |
standard |
Quantity |
|
1 |
Figure 1 — Test pin |
BS1363-2-Fig1 |
1 |
|
2 |
2a)Apparatus for mechanical strength test on resilient covers |
BS1363-2-Fig2 |
2 |
|
3 |
Figure 11 — Go gauge for socket-outlet |
BS1363-2-Fig11 |
1 |
|
4 |
Figure 12 — Contact test gauge |
BS1363-2-Fig12 |
1 |
|
5 |
Figure 13 — Test apparatus and circuit for use with contact and non-contact gauges |
BS1363-2-Fig13 |
1 |
|
6 |
Figure 14 — Non-contact test gauge |
BS1363-2-Fig14 |
1 |
|
7 |
Figure 15 — Turning moment gauge |
BS1363-2-Fig15 |
1 |
|
8 |
Figure 16 — Withdrawal pull gauges for effectiveness of contact |
BS1363-2-Fig16 |
1 |
|
9 |
Figure 18 — Apparatus for flexing test |
BS1363-2-Fig18 |
1 |
|
10 |
Figure 19 — Solid link for test on fuse clips |
BS1363-2-Fig19 |
1 |
|
11 |
Figure 20 — Tumbling barre |
BS1363-2-Fig20 |
1 |
|
12 |
Figure 21 — Pendulum impact test |
BS1363-2-Fig21 |
1 |
|
13 |
Figure 22 — Arrangements for mechanical strength test for portable socket-outlets |
BS1363-2-Fig22 |
1 |
|
14 |
Figure 23 — Apparatus for pressure test |
BS1363-2-Fig23 |
1 |
|
15 |
Figure 24 — Apparatus for ball pressure test |
BS1363-2-Fig24 |
1 |
|
16 |
Figure 28 — Calibrated link |
BS1363-2-Fig28 |
1 |
|
17 |
Figure 29 — Calibration jig for calibrated link |
BS1363-2-Fig29 |
1 |
|
18 |
Figure 30 — Test plug for temperature rise |
BS1363-2-Fig30 |
1 |
