Product Description：

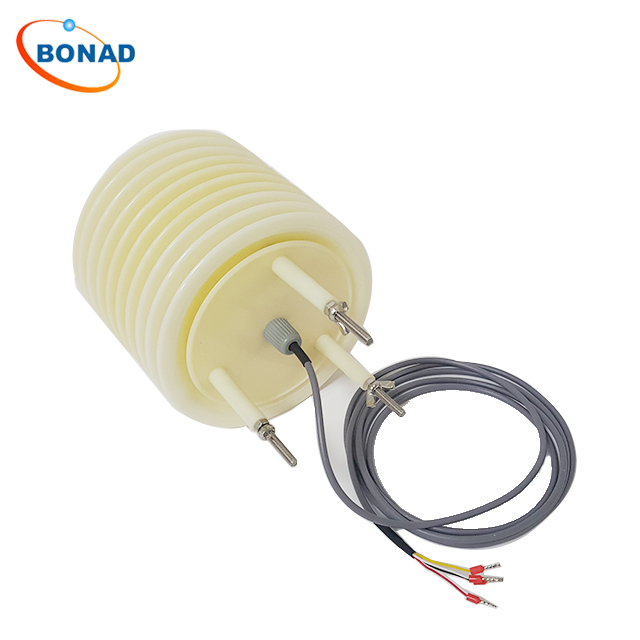

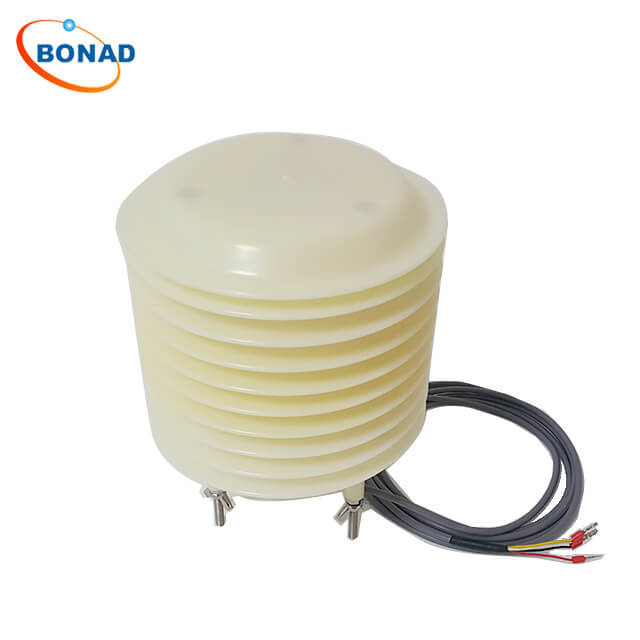

Name：Weather Meteorological Monitoring Station

Type：Daisy10

1. Application:

Daisy10 multi-parameter meteorological monitoring station is a multi-element automatic observation station. It can monitor conventional meteorological elements such as temperature, humidity, air pressure, wind direction, wind speed, soil temperature and humidity, and is widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, storage, scientific research and other fields.

1) A variety of parameters are measured in one, the optional parameters include: air temperature, air humidity, dew point, atmospheric pressure, light intensity, carbon dioxide, soil moisture, soil temperature, soil conductivity, soil PH value, and leaf temperature, leaf humidity, Wind speed, wind direction, solar radiation, etc.

2) The sensor has high accuracy, fast response, good interchangeability and reliable performance.

3) DC wide range power supply, RS485 interface, standard Modbus protocol

4) Multi-parameter integration, easy for system integration.

5) Perfect protection circuit.

2. Technical parameters:

Signal output type	RS485 interface Modbus protocol
Supply voltage	9-30V / DC DC
Preheat time	3 minutes
Response time	30 seconds (90%)
Static power	20mA @ 24V DC
Operating environment	Working temperature: -40 ～ 80 ℃ Working humidity: 0 ～ 95% RH (no condensation)
Installation method	Bracket installation (with bracket mounting plate)
Default cable length	Power supply and communication cable: 2 meters, cable length can be customized.
Connection method	Wiring installation
Dimensions	Diameter * height = 140 * 300mm
Air temperature	Range: -40 ~ 80 ℃ Accuracy: +/- 0.3 ℃ Resolution: 0.01 ℃
Air humidity	Range: 0 ~ 100% Accuracy: +/- 4% Resolution: 0.01%
Dew point	Range: -40 ~ 80 ℃ Accuracy: +/- 0.5 ℃ Resolution: 0.01 ℃
Air pressure	Range: 300 ~ 1100mbar Accuracy: +/- 1mbar Resolution: 0.1mbar
Illumination	Range: 0 ～ 200,000 Lux Accuracy: +/- 5% Resolution: 0.1Lux
carbon dioxide	Range: 0 ～ 5000ppm Accuracy: +/- (50ppm + 5% reading value) Resolution: 1ppm
Soil temperature	Range: -40 ~ 80 ℃ Accuracy: +/- 0.5 ℃ Resolution: 0.01 ℃
Soil Moisture	Range: 0 ~ 100% Accuracy: 2% within 0-50%, 3% within 50-100% Resolution: 0.01%
Soil conductivity	Range: 0 ~ 20000us / cm Accuracy is +/- 3% in the range of 0 ~ 10000us / cm; +/- 5% in the range of 10000 ~ 20000us / cm Resolution: 1us / cm
Leaf temperature	Range: -40 ~ 80 ℃ Accuracy: +/- 0.5 ℃ Resolution: 0.01 ℃
Foliar humidity	Range: 0 ~ 100% Accuracy: +/- 5% Resolution: 0.01%
Soil pH	Range: 0 ~ 14PH Accuracy: +/- 0.1PH Resolution: 0.01PH

3. Dimension:

Diameter: 140mm, height: 300mm

4. Model selection:

Code number

code

Code description

Code 1: Product series

Daisy10

Daisy10 multi-parameter weather monitoring station

Code 2: Supply voltage

9-30V DC

Code 3: Output signal

RS485 interface, Modbus protocol

Code 4: Communication and power cable length

002

XXX

2 meters long

Customized, XXX is any line length (unit: m)

Code 5: Installation method

Bracket installation

This item is not needed

Code 6: Air temperature

Range: -40 ~ 80 ℃

This item is not needed

Code 7: Air humidity

Range: 0 ~ 100%

This item is not needed

Code 8: Dew point

Range: -40 ~ 80 ℃

This item is not needed

Code 9: Atmospheric pressure

Range: 300 ~ 1100mbar

This item is not needed

Code 10: Illumination

Range: 0 ～ 200,000 Lux

This item is not needed

Code 11: Carbon dioxide

Range: 0-1000ppm

Range: 0-2000ppm

Range: 0-5000ppm

Range: 0-10000ppm

Range: 0-30000ppm

Range: 0-50000ppm

This item is not needed

Code 12: Soil temperature

Range: -40 ~ 80 ℃

This item is not needed
